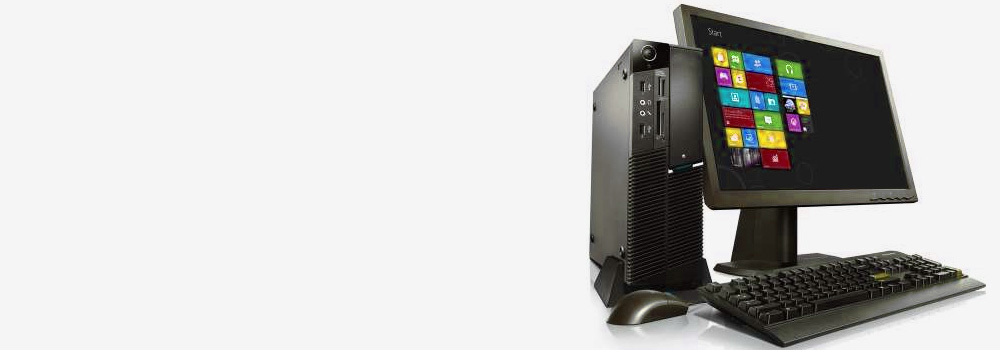

Windows PC Data Recovery

Staines Data Recovery: The UK’s No.1 Desktop Computer Data Recovery Specialists

For 25 years, Staines Data Recovery has been the UK’s premier destination for recovering lost data from desktop computer hard drives and SSDs. Desktop drives, particularly high-capacity 3.5-inch models and enterprise-grade SSDs, present a distinct set of challenges, from complex mechanical systems to advanced firmware architectures. Our state-of-the-art laboratory is specifically engineered to handle the immense data densities and sophisticated technologies found in modern desktop storage.

Supported Desktop Computer Manufacturers & Popular Models

We possess an unparalleled depth of experience with the storage drives used in all major desktop computer brands and their most popular series.

Top 30 Desktop Manufacturers & Their Best-Selling Models:

1. Dell: OptiPlex, XPS, Alienware, Precision Tower Workstations

2. HP (Hewlett-Packard): Pavilion, Omen, EliteDesk, ProDesk, Z Workstations

3. Lenovo: ThinkCentre, IdeaCentre, Legion Tower, ThinkStation

4. Acer: Aspire, Predator, Veriton

5. ASUS: ROG (Republic of Gamers), TUF Gaming, ProArt, ExpertCenter

6. Apple: iMac, Mac Pro, Mac Studio

7. CyberPowerPC: (Gaming Desktops)

8. Scan Computers: 3XS Systems (UK Manufacturer)

9. PC Specialist: (UK Custom Builders)

10. Novatech: (UK Manufacturer)

11. Fujitsu: Esprimo, Celsius Workstations

12. MSI: Infinite, MEG, MAG Series Gaming Desktops

13. Viglen: (UK Business Desktops)

14. Stone Computers: (UK Business Desktops)

15. Titan Computers: (Workstation Specialists)

16. Chillblast: (UK Custom Builders)

17. Overclockers UK: (Gaming Desktops)

18. Mesh Computers: (Custom Desktops)

19. ADMI: (Custom Builds)

20. Evesham Computers: (Legacy/Custom)

21. Enta: (Business Desktops)

22. Britannic Technologies: (Business Desktops)

23. CCL Computers: (Custom Desktops)

24. DinoPC: (Gaming Desktops)

25. JP Technologies: (Workstations)

26. Vibox: (Gaming Desktops)

27. AWD-IT: (Gaming Desktops)

28. Box Limited: (Business Desktops)

29. Arbico Computers: (Workstations)

30. Argon Computers: (Business Desktops)

Supported Desktop Drive Interfaces:
We recover data from every interface found in desktops, from legacy to cutting-edge: SATA (I, II, III), SAS (I, II, III), PATA/IDE (40-pin & 80-wire), PCIe (AHCI & NVMe), M.2 (SATA & NVMe), U.2 (SFF-8639), NVMe, SCSI (Narrow, Wide, Ultra320), Fibre Channel (1Gbps-16Gbps), eSATA, and proprietary legacy interfaces.

30 Critical Desktop Hard Drive & SSD Errors & Our Technical Recovery Processes

Desktop drives are built for performance and capacity, leading to unique and complex failure modes. Our processes are meticulously designed for these robust yet intricate devices.

1. Multiple Head Stack Assembly (HSA) Failure in High-Capacity Drives

• Problem: Modern 3.5″ desktop drives (e.g., 8TB+ drives) often utilise 8-10 read/write heads. A head crash or degradation can affect multiple heads simultaneously, leading to severe data inaccessibility and loud clicking or repetitive clicking sounds.

• Technical Recovery Process: In our Class 100 ISO 5 Cleanroom, the damaged HSA is carefully removed. We source an exact-match donor HSA, which requires meticulous compatibility matching based on the preamplifier version and firmware adaptives. The swap is performed with extreme precision. The drive is then connected to a professional imager (PC-3000, DeepSpar Disk Imager) where we can disable the damaged heads electronically and image the data from the remaining functional heads, often requiring multiple donor assemblies to achieve a complete recovery.

2. Enterprise SSD Controller Firmware Panic with Capacitor Backup Failure

• Problem: Enterprise SSDs with Power Loss Protection (PLP) suffer a capacitor failure. During a power outage, the capacitors cannot hold charge to flush the DRAM cache, causing a catastrophic firmware panic that renders the drive unresponsive. The drive may report “LBA 0” or fail the initial IDENTIFY DEVICE command.

• Technical Recovery Process: We use the PC-3000 SSD system to force the drive into a vendor-specific engineering mode by manipulating the PCIe reset lines and power sequencing. This allows us to access the service area of the NAND. We then repair the corrupted firmware modules responsible for the FTL (Flash Translation Layer) and system state, effectively rebooting the controller’s logic and restoring access to the user data area.

3. SAS Drive Firmware Corruption and Protocol Lockouts

• Problem: SAS (Serial Attached SCSI) drives have complex firmware that can become corrupted, especially the vital “Vendor Unique” pages. The drive may respond to discovery but fail to initialise the SCSI protocol, returning a “Logical Unit Not Supported” error.

• Technical Recovery Process: We connect the drive to a specialised SAS adapter within the PC-3000 system. We access the drive’s firmware via the SCSI Mode Sense and Log Sense commands. Corrupted configuration pages are identified and rewritten using known-good templates from our database. This process often requires a hot-plug sequence to reset the drive’s communication state without a full power cycle.

4. SATA PCB Power Surge and TVS Diode Failure

• Problem: A power surge through the SATA power connector causes the Transient Voltage Suppression (TVS) diodes on the drive’s PCB to short-circuit to protect the main controller and motor driver IC. The drive appears completely dead.

• Technical Recovery Process: We visually inspect the PCB for burned TVS diodes (usually labeled D1 [5V] or D2 [12V]). Using a multimeter, we confirm the short. The failed diodes are carefully desoldered. This often restores power to the drive. If the surge propagated further, damaging the motor driver IC, we proceed with a full PCB repair, including ROM chip transplantation from the patient PCB to a compatible donor.

5. Platter Scoring and Media Damage from Severe Head Crash

• Problem: A catastrophic head crash has physically scored the platter surface, destroying the magnetic coating in specific zones. The drive may make grinding noises.

• Technical Recovery Process: After a cleanroom head swap, we use the imaging hardware to create a media scan map. The LBA ranges corresponding to the physical damage are identified and skipped during the initial imaging pass to preserve the new donor heads. We then return to the damaged zones with the read retries set to a minimum, attempting to read any salvageable data from the periphery of the scratches. This often results in a partial but critical recovery.

6. NVMe M.2 SSD Namespace Corruption and PCIe Link Training Failure

• Problem: The NVMe drive’s namespace configuration becomes corrupted, or the drive fails to establish a stable PCIe link with the motherboard. The drive is not detected in the BIOS/UEFI or is detected as a generic PCIe device.

• Technical Recovery Process: We use a dedicated PCIe adapter card with the PC-3000 NVMe system. This hardware allows us to manipulate the PCIe link state and force the drive into a safe mode. We then issue NVMe Admin commands to detach the corrupted namespace and reconstruct it based on parameters extracted from the controller’s internal memory dump, effectively redefining the active data area.

7. Western Digital ROM Module Corruption and Adaptive Data Loss

• Problem: The ROM chip on a Western Digital PCB, which contains unique adaptive data for the specific drive (including the head map and servo calibration parameters), becomes corrupted. A simple PCB swap will fail as the donor PCB’s ROM is incompatible.

• Technical Recovery Process: We read the corrupted ROM using a SPI programmer (e.g., RT809H). We then use the PC-3000’s utility modules for WD drives to generate a new ROM file based on the drive’s model and serial number, incorporating the necessary adaptive data. This new ROM is written to the chip. If generation is impossible, we may perform a “hot-swap,” initialising the drive with a donor PCB and then swapping in the patient PCB to read the adaptive data directly from the platters.

8. Seagate F3 Architecture Firmware Corruption (System Area Unreadable)

• Problem: The System Area (SA) on a Seagate drive (e.g., Barracuda, IronWolf) is unreadable due to media degradation or corruption of the SA translator module. The drive may click repeatedly as it cannot load its firmware.

• Technical Recovery Process: We terminal access the drive via its UART serial port using the PC-3000. We then initiate a regeneration procedure for the critical translator module. This involves reading the servo information from the platters directly to rebuild the map of usable sectors, bypassing the corrupted SA modules. Once the translator is rebuilt, we can access the user data area.

9. RAID Array Failure with Multiple Member Degradation

• Problem: A desktop RAID array (e.g., RAID 5, 6, or 10) suffers multiple drive failures or a controller failure, exceeding the redundancy’s ability to rebuild.

• Technical Recovery Process: We image every member drive individually at the sector level. Using advanced RAID reconstruction software (e.g., ReclaiMe, UFS Explorer), we perform a manual analysis to determine the correct parameters: stripe size, block order, parity rotation, and start offset. For complex or degraded arrays, we often have to manually piece together data structures to verify the correct configuration before virtual assembly.

10. Solid-State Drive (SSD) NAND Flash Read Disturb and Data Retention Errors

• Problem: On high-density QLC or PLC SSDs, reading data repeatedly from one block can cause charge leakage in adjacent blocks (read disturb). Additionally, data retention issues occur when charged cells slowly leak their charge over time, especially in warm environments.

• Technical Recovery Process: Chip-off recovery is necessary. The NAND packages are desoldered and read. The raw dumps are processed with software that employs sophisticated error correction algorithms that model physical NAND characteristics. We apply “read disturb” correction and adjust the reference voltage thresholds for reading the cells to compensate for charge loss, effectively “re-tuning” the read process to the aged NAND.

11. File System Corruption on Multi-Terabyte Volumes (e.g., NTFS $MFT Corruption)

• Problem: The Master File Table ($MFT) on a large, multi-terabyte NTFS volume becomes corrupted. The volume may mount as RAW, or files may be missing.

• Technical Recovery Process: We image the drive. We then search for the location of the $MFT mirror (a backup located in the middle of the volume). If the mirror is also corrupt, we perform a raw scan of the entire volume for FILE records, which are 1KB in size and have a specific signature. We then reconstruct the $MFT by stitching these records together, allowing for directory structure recovery.

12. Spindle Motor Bearing Seizure in 3.5″ Drives

• Problem: The spindle motor bearings seize due to wear or contamination, preventing the platters from spinning. The drive may hum but not achieve operational RPM (7200/5400 RPM).

• Technical Recovery Process: This requires a full platter transplant. In the cleanroom, the platters are meticulously transferred from the patient drive to an identical donor drive that has a healthy motor and HSA. The alignment of the platters relative to the spindle and each other is critical and must be preserved with micron-level precision using specialised alignment tools.

13. S.M.A.R.T. Attribute Overflow and Pre-Failure Lockout

• Problem: The drive’s S.M.A.R.T. attributes, such as Reallocated Sector Count (05) or Pending Sector Count (C5), exceed threshold values, causing the system BIOS or OS to lock the drive out as a precaution.

• Technical Recovery Process: We use our hardware to ignore the S.M.A.R.T. status. We place the drive into a factory-level utility mode that disables the reporting of these attributes to the host. This allows us to image the drive without OS-level restrictions, focusing on data extraction before a total failure occurs.

14. Encrypted Drive (BitLocker, FileVault) with Damaged Boot Loader

• Problem: The drive is encrypted, but the pre-boot environment is damaged by a bad sector or malware, preventing the user from entering their password or recovery key.

• Technical Recovery Process: We first repair any physical damage to the drive. We then focus on logical repair of the boot sector or the TPM (Trusted Platform Module) metadata area. Our goal is to restore the system’s ability to load the decryption software, allowing the user to authenticate with their valid credentials. We do not break the encryption itself.

15. Bad Sector Management G-List Overflow and Unstable Sectors

• Problem: The drive’s G-List (grown defect list) is full. New unstable sectors cannot be reallocated, causing read/write commands to timeout and the system to hang.

• Technical Recovery Process: We use the PC-3000 to read the G-List and P-List (permanent defects). We then clear the G-List and disable the drive’s internal remapping. Our imaging hardware then takes over the bad sector management, using controlled read retries and skipping algorithms to create a stable image, relocating the bad sectors within our software’s environment.

16. Legacy IDE/PATA Drive PCB and BIOS Detection Issues

• Problem: An older IDE drive has a failed PCB or suffers from BIOS detection issues due to incorrect CHS (Cylinder-Head-Sector) or LBA (Logical Block Addressing) translation.

• Technical Recovery Process: For PCB failure, we perform a ROM chip transplant from the patient PCB to a donor. For detection issues, we use a dedicated IDE adapter that allows us to manually set the drive’s parameters (CHS, LBA) or force a lower transfer mode (PIO) to achieve stable communication for imaging.

17. Solid-State Drive (SSD) Controller Degradation and I/O Timeouts

• Problem: The SSD controller degrades, causing severe I/O timeouts and making the drive disappear from the system. This is common in drives with known controller issues (e.g., some Phison or SandForce controllers).

• Technical Recovery Process: We use hardware that can hold the drive in a reset state and then apply a specific power-on timing sequence to “wake up” the controller. Once responsive, we immediately begin imaging with very short timeout values to extract data in small, manageable chunks before the controller locks up again.

18. Thermal Recalibration Issues in High-Performance Drives

• Problem: High-performance drives undergo thermal recalibration (aka “flying height control”), where they momentarily pause to adjust the head position due to thermal expansion. Aggressive system settings can misinterpret this as a drive error.

• Technical Recovery Process: We use the PC-3000 to disable the automatic thermal recalibration routine or extend the command timeout values on the host system. This prevents the system from dropping the drive during necessary calibration cycles, allowing for a stable imaging process.

19. HFS+/APFS Journal Corruption on Mac Pro/Mac Studio Drives

• Problem: The journal file on an Apple filesystem becomes corrupted, preventing the operating system from mounting the volume on a Mac desktop.

• Technical Recovery Process: We image the drive and then use advanced Mac recovery software that can ignore the corrupted journal. It directly scans the volume for the primary file system structures—the Catalog File for HFS+ or the Object Map for APFS—to reconstruct the file and folder hierarchy manually, bypassing the journal entirely.

20. Power Loss During Firmware Update

• Problem: A power interruption occurs while the drive is applying a firmware update, leaving the firmware in a partially written, bricked state.

• Technical Recovery Process: We use hardware tools to force the drive into a bootloader or recovery mode. This allows us to communicate with a minimal portion of the firmware that remains functional. We then upload a complete, known-good firmware image to the drive, effectively re-flashing it and, in most cases, restoring access to the user data.

21. File Deletion and Operating System Reinstallation

• Problem: The user has reinstalled the operating system over the old one, overwriting the original file system metadata and potentially some user data.

• Technical Recovery Process: We create a forensic image. We then perform a deep scan for residual file system structures from the previous installation. This is a race against the overwrite. We look for orphaned FILE records in the unused space between the new installation’s data and the end of the partition, a technique known as “file carving” on a file system level.

22. Vibration-Induced Media Damage in Multi-Drive Systems

• Problem: In a desktop with multiple drives, vibration from one drive can cause adjacent drives to experience head positioning errors, leading to media damage and bad sectors.

• Technical Recovery Process: The affected drive is imaged in a stable, single-drive environment. We use imaging hardware with advanced skipping algorithms to avoid areas of instability. The process is slow and methodical, focusing on reading stable tracks first before carefully attempting recovery from the vibration-damaged areas.

23. SCSI Drive Firmware and Terminator Issues

• Problem: Legacy SCSI drives have complex termination and SCSI ID requirements. Firmware corruption or incorrect termination can prevent the drive from being seen by the host adapter.

• Technical Recovery Process: We configure the drive on a dedicated SCSI controller card with known-good termination. If the drive is still unresponsive, we use SCSI diagnostic tools to send low-level SCSI commands (e.g., INQUIRY, TEST UNIT READY) to diagnose firmware issues and attempt to reset the drive’s logical unit.

24. ZFS File System Corruption on Home Server Desktops

• Problem: The ZFS pool on a desktop used as a home server becomes corrupted due to a failed drive or memory errors, resulting in a “pool corrupted” error.

• Technical Recovery Process: We image all drives in the pool. We then use ZFS recovery tools to import the pool in a read-only, recovery mode. This involves repairing the Uberblock ring and reconstructing the pool configuration by specifying the correct vdev structure and attempting to roll back recent transactions to a stable state.

25. BIOS/UEFI HDD Password Lock

• Problem: A BIOS-level hard drive password has been set and forgotten. The drive is functionally locked at the hardware level.

• Technical Recovery Process: For many drives, the password is stored in a specific firmware module in the Service Area. We use the PC-3000 to access the SA and either clear the password module or reset the security state by writing a known-good, password-free version of the module to the drive.

26. Degaussing or Strong Magnetic Field Exposure

• Problem: The drive has been exposed to a powerful magnetic field, partially erasing or altering the magnetic domains on the platters.

• Technical Recovery Process: This is severe media damage. We attempt recovery by maximising the read head’s sensitivity, adjusting the read channel parameters (MR bias, read current) to extreme values to detect any remaining magnetic signal. Success is highly variable and often partial.

27. Cache Memory Failure on the Drive’s PCB

• Problem: The DRAM cache chip on the drive’s PCB fails. The drive may be detected but fail during read/write operations or during the initialization sequence.

• Technical Recovery Process: We identify the cache chip (usually near the main controller) and replace it with an identical donor component. The size and speed of the cache must match exactly. After replacement, the drive often requires a power cycle to re-initialise correctly.

28. Partition Loss on GPT Drives

• Problem: The GUID Partition Table (GPT) is corrupted or overwritten. The drive shows as unallocated space in Disk Management.

• Technical Recovery Process: We search the last sector of the drive for the backup GPT header. If found and valid, we use it to reconstruct the primary GPT at the beginning of the drive. If the backup is also corrupt, we scan the drive for partitions by looking for known file system signatures (e.g., the NTFS “55 AA” signature) and manually rebuild the partition entries.

29. Solid-State Drive (SSD) Secure Erase Command Execution

• Problem: A sanitise or secure erase command has been issued, which cryptographically erases the data by deleting the encryption key.

• Technical Recovery Process: Recovery is impossible. The data is not overwritten but is permanently encrypted with a key that has been destroyed. No known technique can recover the data.

30. Physical Damage from Impact or Fall

• Problem: The desktop tower has been dropped or struck, causing physical damage to the drive’s HDA, such as a cracked base or misaligned spindle.

• Technical Recovery Process: The drive is assessed in the cleanroom. If the HDA is compromised, it may need to be transferred to a donor HDA. This involves moving the entire internal assembly (platters, heads, actuator) to a new, undamaged enclosure—a highly complex procedure that carries significant risk.

Why Choose Staines Data Recovery for Your Desktop Computer?

• 25 Years of Desktop Drive Expertise: We have recovered data from every generation of desktop storage.

• Enterprise-Grade Equipment: We invest in the best technology: multiple PC-3000 systems, DeepSpar Imagers, and chip-off recovery tools.

• Vast Donor Drive Library: Critical for mechanical parts and PCB compatibility.

• Class 100 Cleanroom: Essential for successful recovery from modern high-capacity drives.

• Advanced Logical Recovery Capabilities: Experts in complex file systems and RAID.

• Free Diagnostics: A clear, no-obligation report and a fixed-price quote.

• “No Data, No Fee” Policy: You only pay if we are successful.

Contact Staines Data Recovery today for your free diagnostic. Trust the UK’s No.1 desktop data recovery specialists to get your business or personal data back.
