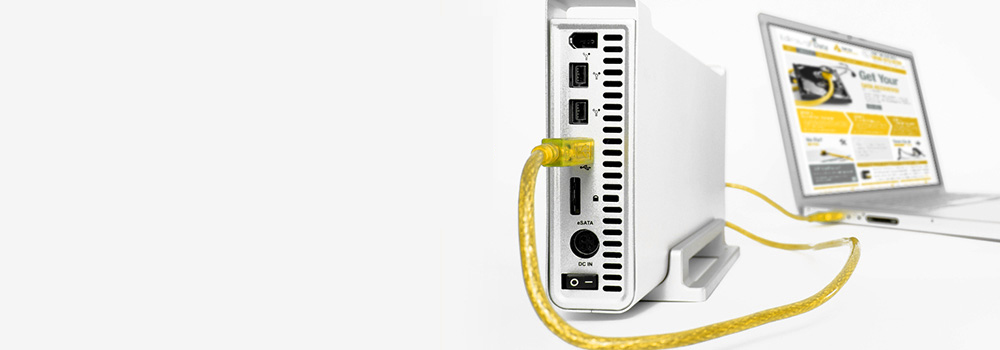

External Hard Drive Recovery

Staines Data Recovery: The UK’s Leading External HDD & NAS Data Recovery Specialists

For 25 years, Staines Data Recovery has been the UK’s premier destination for recovering lost data from External Hard Drives (HDDs) and Network-Attached Storage (NAS) drives. We specialise in overcoming the unique challenges posed by these devices, from the complex electronics of their external enclosures to the multi-drive configurations of NAS units. Our advanced laboratory is equipped to handle every type of fault, ensuring the highest possible success rate for data recovery.

Supported Manufacturers and Top-Selling Models in the UK

We have an extensive inventory of donor parts and deep expertise with every major external drive manufacturer and their most popular models, including:

Top 30 External HDD/SSD Manufacturers & Their Top-Selling Models:

1. Western Digital (WD): My Passport, My Book, Elements, Black P10/D10, Blue Series

2. Seagate: Expansion Series, Backup Plus Series, One Touch, IronWolf (NAS), SkyHawk (NAS)

3. Toshiba: Canvio Basics, Canvio Advance, Canvio Flex

4. Samsung: T-Series (T5, T7, T9), Portable SSD

5. SanDisk: Extreme Pro, Extreme, Portable SSD

6. LaCie: Rugged Series, d2 Professional, Porsche Design

7. ADATA: SE800, SD700, HD710 Pro External SSDs

8. Crucial: X6, X8, X9 Portable SSDs

9. Kingston: XS2000, NV2 External SSD

10. Sabrent: Rocket XTRM-Q, Rocket Drive

11. Corsair: Flash Voyager, Flash Survivor

12. G-Technology (WD Subsidiary): G-DRIVE, G-RAID

13. Buffalo: Ministation, LinkStation (NAS)

14. Synology: DiskStation (NAS Drives themselves)

15. QNAP: Turbo NAS (NAS Drives themselves)

16. Transcend: StoreJet, ESD350C Portable SSD

17. Iomega (Legacy): eGo, Prestige

18. Promise: Pegasus, SanDisk2

19. OWC: Mercury Elite, Envoy Pro

20. Seagate (Maxtor): (Legacy Models)

21. Verbatim: Store ‘n’ Go, Premium

22. PNY: Elite-X, Pro Elite

23. TeamGroup: PD1000, PD2000 Portable SSDs

24. Inateck: FE2005, FE2011

25. RavPower: RP-WD009, RP-WD010

26. Aukey: DT-10B, DT-10S

27. Lenovo: ThinkPad, F309

28. Fantom: Drives, PowerBass

29. Silicone Power: A60, Armor A65

30. HGST (Hitachi): Touro, (Legacy Models)

Supported Interfaces:
We recover data from every interface used by external storage: SATA, PATA (IDE), NVMe, SCSI, SAS, PCIe, M.2 (SATA & NVMe), U.2, eSATA, USB 2.0/3.0/3.1/3.2 (Type-A & Type-C), Thunderbolt (1, 2, 3, 4), FireWire (400 & 800), and legacy proprietary connections.

30 Critical External HDD & NAS Errors & Our Technical Recovery Processes

External and NAS drives face unique failure modes, often related to their enclosures, portability, and in the case of NAS, complex RAID configurations. Here are 30 common errors and the sophisticated processes we employ.

1. USB Bridge Controller / PCB Failure

• Problem: The external drive’s enclosure contains a dedicated PCB that converts the internal SATA signal to USB. This board is highly susceptible to power surge damage.

• Technical Recovery Process: We bypass the failed external electronics by directly connecting the native SATA drive inside to our professional recovery hardware (PC-3000, DeepSpar). If the bridge implements hardware-based encryption (common in WD My Passport/Book), we must repair the original bridge or transplant its specific ROM chip to an identical donor board to decrypt the data before access is possible.

2. Hardware Encryption Lock-Out

• Problem: The external drive’s bridge PCB uses AES-256 hardware encryption. A fault in the bridge prevents access to the data, even if the internal drive is healthy. A simple PCB swap renders the data permanently locked.

• Technical Recovery Process: This is a critical specialty. We diagnose the exact component on the bridge PCB that has failed (e.g., the main controller or memory). Using micro-soldering techniques, we repair the original board or transfer the NAND flash memory chip containing the encryption keys from the patient board to a 100% compatible donor board. This allows the decryption engine to function correctly.

3. NAS Drive Failed RAID Member

• Problem: A single drive within a multi-bay NAS (e.g., Synology, QNAP) has failed, causing the RAID array (SHR, RAID 5, etc.) to degrade. A subsequent failure or incorrect rebuild attempt causes data loss.

• Technical Recovery Process: We create forensic images of every drive in the array. Using RAID recovery software (UFS Explorer, ReclaiMe), we analyse the metadata on each drive to determine the correct RAID parameters: stripe size, block order, parity rotation, and start offset. We then virtually reconstruct the array to extract the data, often dealing with proprietary implementations like Synology Hybrid RAID (SHR).

4. NAS File System Corruption (e.g., Btrfs, ZFS)

• Problem: NAS devices often use advanced file systems like Btrfs or ZFS. Corruption of the file system’s metadata (superblocks, B-trees) can make the entire volume inaccessible.

• Technical Recovery Process: We work with the raw image of the reconstructed RAID array. Using specialised tools and hex editors, we manually repair critical file system structures. For Btrfs, we may need to locate and validate backup copies of the superblock. For ZFS, we repair the Uberblock ring and reconstruct the ZFS pool configuration.

5. Accidental Deletion from a NAS

• Problem: Files or entire shared folders are deleted from the NAS interface. Many NAS devices do not have a traditional “Recycle Bin” enabled by default.

• Technical Recovery Process: We image the affected drives. The recovery is a logical file system carve. We scan the entire disk image for residual file system metadata (inodes, directory entries). For Btrfs, we search for orphaned items and reconstruct the root tree. The fragmented nature of NAS data requires sophisticated carving algorithms to reassemble files.

6. Physical Shock / Drop Damage

• Problem: The portability of external drives makes them prone to being dropped, leading to Head Stack Assembly (HSA) misalignment, head crashes, or spindle motor seizure.

• Technical Recovery Process: The drive is immediately moved to our Class 100 ISO 5 Cleanroom. We perform a full HSA replacement using an exact-match donor assembly. The platters are inspected for media damage under high magnification. The drive is then stabilised on a hardware imager with controlled, adaptive reading to clone the data, skipping over any physically damaged areas.

7. Power Surge Damage via USB Port

• Problem: A voltage spike from the computer’s USB port or a faulty power adapter destroys components on the external enclosure’s PCB and can potentially damage the internal drive’s electronics.

• Technical Recovery Process: We first inspect the external PCB for failed TVS (Transient Voltage Suppression) diodes and other components, removing/replacing them. If the surge propagated to the internal drive’s PCB, we perform a full PCB repair, including ROM chip transplantation, as detailed in error #1.

8. Firmware Corruption in Self-Encrypting Drives (SEDs)

• Problem: External and NAS drives often are Self-Encrypting Drives (SEDs). Corruption of the firmware zone, which holds the encryption key, can permanently lock the data.

• Technical Recovery Process: Using the PC-3000, we access the drive’s Service Area (SA). We diagnose and repair the corrupted firmware modules responsible for security (e.g., the “Security” module). This process may involve hot-swapping the PCB to load a working firmware environment into RAM to facilitate SA repairs without triggering the drive’s security lock.

9. Bad Sectors Causing I/O Timeouts

• Problem: Media degradation leads to a high number of bad sectors. The operating system times out, causing the external drive to disconnect or become unresponsive.

• Technical Recovery Process: We use hardware imagers (DeepSpar Disk Imager) that allow us to control the drive’s timeouts and retry policies. We disable the drive’s internal retries and use the imager’s hardware to perform slow, controlled reads, often applying a specific voltage pulse to the preamplifier to encourage a successful read from weak sectors.

10. Overheating-Induced Logical Errors

• Problem: Poor ventilation in external enclosures, especially for high-performance drives, causes overheating. This leads to read/write instability and logical corruption.

• Technical Recovery Process: We cool the drive using targeted airflow or a Peltier cooler to bring it to a stable operating temperature. We then create a sector-by-sector clone. The resulting image is analysed for logical corruption, and we repair file system structures using advanced software like R-Studio Technician.

11. Unsupported File System after Removal from NAS

• Problem: When a drive is removed from a NAS and connected directly to a PC via SATA, the file system (e.g., Btrfs, ZFS, or a proprietary format) is not recognised by Windows.

• Technical Recovery Process: This is not a physical failure but a logical one. We image the drive and then use file system support within our recovery software (e.g., UFS Explorer) that is specifically designed to read Linux-based file systems, allowing us to extract the data correctly.

12. Failed PCB Motor Driver IC

• Problem: The motor driver IC on the internal drive’s PCB is burned out, often due to power issues or attempting to spin up a seized drive. The drive will not spin up.

• Technical Recovery Process: We source an identical donor PCB. However, a simple swap will not work due to adaptive data stored in the ROM. We desolder the ROM chip from the patient PCB using a hot-air rework station and solder it onto the donor PCB, or we use a programmer to transfer the ROM’s binary data.

13. Platter Scratches from Head Crash

• Problem: The read/write heads have physically contacted the platters, leaving scratches that destroy data in specific zones.

• Technical Recovery Process: After a cleanroom head swap, we use our imaging hardware to map the damaged areas by their logical block addressing (LBA). We then skip these areas during the initial imaging pass to preserve the heads. Later, we return to the damaged zones with reduced read retries to salvage any readable data fragments from the periphery of the scratches.

14. SSD Controller Failure (in External SSDs)

• Problem: The SSD controller chip in a portable external SSD fails. The drive is not detected, or it detects as the wrong capacity.

• Technical Recovery Process: We use the PC-3000 SSD system to attempt communication with the controller. If this fails, we proceed with a NAND chip recovery. The NAND flash memory chips are desoldered from the PCB and read individually in a chip programmer. The resulting binary dumps are then processed using specialised software to account for the controller’s specific RAID-like striping, ECC, and wear-leveling algorithms to reconstruct the original data.

15. NAND Flash Wear (SSD Degradation)

• Problem: The SSD has reached the end of its write endurance, leading to a high bit error rate that the internal ECC can no longer correct.

• Technical Recovery Process: Direct NAND reading is required. We use advanced software correction algorithms that are far more powerful than the SSD’s built-in ECC. We analyse the raw bit error patterns and apply correction techniques that can often recover data the drive’s controller has declared unrecoverable.

16. Partition Loss on External Drives

• Problem: The partition table (MBR or GPT) is corrupted, often due to unsafe ejection, malware, or user error. The drive shows as “uninitialised” or “unallocated.”

• Technical Recovery Process: We perform a full sector-level scan of the drive to locate the beginning of partitions by searching for file system boot sector signatures (e.g., “NTFS,” “55 AA”). We then manually reconstruct the partition table entries, specifying the correct starting sector and size for each partition.

17. Drive Not Recognised by BIOS/System

• Problem: The drive is not detected by the computer’s BIOS or Disk Management. This can be caused by PCB failure, firmware corruption, or severe internal damage.

• Technical Recovery Process: Our hardware tools (PC-3000) bypass the computer’s BIOS entirely. They communicate directly with the drive’s processor using ATA/SCSI commands. This allows us to diagnose whether the issue is electronic (PCB), firmware-based (Service Area), or mechanical (heads).

18. Water Damage to Enclosure and Drive

• Problem: The external drive has been exposed to liquid, causing corrosion on the external PCB and potentially contaminating the internal HDA.

• Technical Recovery Process: The device is disassembled. The internal drive is removed from the corroded enclosure. The HDA is opened in the cleanroom to inspect for contamination. The platters are ultrasonically cleaned if necessary. The internal drive’s PCB is cleaned with industrial solvents and repaired under a microscope.

19. Clicking Sound (Recalibration Errors)

• Problem: The drive cannot read its system tracks and continuously resets the heads, producing a rhythmic clicking sound. Common in portables due to shock damage.

• Technical Recovery Process: We use the PC-3000 to send commands to disable the drive’s automatic recalibration routine. This stabilises the drive enough to allow us to image the data area. If the system area is damaged, we may need to use a firmware utility to regenerate the translator module.

20. Spindle Motor Bearing Wear

• Problem: The bearings that allow the platters to spin freely have worn out, creating friction and preventing the drive from reaching its operational RPM. The drive may hum or vibrate excessively.

• Technical Recovery Process: This requires a platter swap. In the cleanroom, the platters are transferred from the patient drive to an identical donor drive that has a healthy motor and head assembly. This procedure requires extreme precision to maintain the original alignment of the platters.

21. File System Corruption after Unsafe Ejection

• Problem: The drive was disconnected without using “Safely Remove Hardware,” causing write-cache data to be lost and leading to metadata inconsistencies.

• Technical Recovery Process: We create an image of the drive. Using file system repair tools, we run a consistency check on the file system structures (e.g., chkdsk for NTFS, fsck for EXT4). We work on the image to repair the corrupted metadata, such as the $Bitmap file in NTFS or the inode tables in EXT4.

22. Firmware Bugs causing Capacity Reporting Issues

• Problem: A firmware bug causes the drive to report an incorrect capacity (e.g., 0 MB or a much smaller size) or to hang during the identification phase.

• Technical Recovery Process: We use the PC-3000 to manually initiate the drive’s initialization sequence, skipping the faulty microcode. We then load a corrected version of the firmware modules from our database into the drive’s RAM, allowing it to correctly identify itself and provide access to the data area for imaging.

23. S.M.A.R.T. Failures leading to Drive Disabling

• Problem: The drive’s internal S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) attributes have exceeded threshold values, causing the system to disable the drive as a precaution.

• Technical Recovery Process: We use our hardware to ignore the S.M.A.R.T. status and put the drive into a “factory mode” that allows direct access to the data. The priority is to create a full clone as quickly as possible before a total failure occurs.

24. Connector Damage (USB-C, Micro-B)

• Problem: The physical USB port on the external enclosure is broken or damaged from frequent plugging/unplugging.

• Technical Recovery Process: We carefully disassemble the enclosure. If the port is on a separate daughterboard, we replace it. If it’s directly on the main bridge PCB, we use micro-soldering equipment to desolder the damaged port and solder a new one in its place.

25. Accidental Formatting or Initialisation

• Problem: The user has mistakenly formatted the drive or initialised it, destroying the existing partition table.

• Technical Recovery Process: We perform a deep scan of the drive’s surface. The scan looks for residual file system signatures to reconstruct the previous partition layout. For NTFS, we search for the $MFT (Master File Table) and rebuild the directory structure. For HFS+/APFS, we search for the volume header and catalog file.

26. Virus or Ransomware Infection

• Problem: Malicious software has corrupted, deleted, or encrypted files on the external drive.

• Technical Recovery Process: We create a forensic image. We then scan this image with advanced anti-virus tools. For ransomware, we attempt to identify the strain and use available decryption tools. If not available, we perform a raw file carve, searching for file headers and footers to recover files that may have been encrypted in place.

27. Degaussing / Magnetic Damage

• Problem: The drive has been exposed to a strong magnetic field, partially erasing or distorting the magnetic signal on the platters.

• Technical Recovery Process: This is a severe form of media damage. We use our hardware to adjust the read channel parameters (MR head bias, read current) to maximum sensitivity in an attempt to read the weakened magnetic signals. Recovery success is often partial and depends on the strength of the exposure.

28. Stiction (Platters Adhered to Heads)

• Problem: Primarily in older drives, the heads become stuck to the platter surface due to lubricant breakdown, often after a period of storage.

• Technical Recovery Process: In the cleanroom, we manually and very carefully pry the heads away from the platter surface using specialised non-magnetic tools. The platters are then cleaned, and the HSA is replaced with a donor assembly to prevent the issue from recurring during recovery.

29. TVS Diode Short Circuit

• Problem: The Transient Voltage Suppression diode on the PCB has shorted due to a power surge, preventing the drive from receiving power.

• Technical Recovery Process: This is a common and often simple fix. We identify the shorted TVS diode (usually near the power input or USB port) and carefully remove it from the PCB. This often restores power to the drive. We then immediately image the drive, as the protective diode is no longer present.

30. NAS Configuration Database Corruption

• Problem: The NAS operating system’s configuration database is corrupted, preventing the array from mounting correctly, even though the individual drives are healthy.

• Technical Recovery Process: We image each drive. We then analyse the RAID configuration by examining the metadata on each drive to manually determine the RAID structure. We bypass the NAS’s operating system entirely by virtually reconstructing the array on our recovery hardware.

Why Choose Staines Data Recovery?

• 25 Years of Specialisation: A quarter-century focused on the unique challenges of external and NAS drive recovery.

• Advanced Electronics Lab: Equipped for complex PCB repair, including chip-off recovery and encryption key transfer.

• Class 100 Cleanroom: Essential for successful mechanical interventions on modern high-density drives.

• Comprehensive Toolset: We invest in the best technology: PC-3000, DeepSpar, chip programmers, and more.

• Free Diagnostics: We provide a clear, no-obligation report and a fixed-price quote.

• “No Data, No Fee” Promise: You only pay if we are successful in recovering your data.

Contact Staines Data Recovery today for your free, expert diagnostic. Trust the UK’s specialists to recover what matters.
